1993 Ford Explorer

Specifications

What's under the hood.

Horsepower

155 hp

Cylinders

6-cyl

Displacement

4L

Fuel

Gasoline

Transmission

Automatic 4-spd

Drive

RWD

Body class

Special Purpose Vehicles

Doors

4

• 95I007000

  STRUCTURE:BODY:HATCHBACK/LIFTGATE:SUPPORT DEVICE/STRUT

  VEHICLE DESCRIPTION: MULTI-PURPOSE PASSENGER VEHICLES. THIS IS NOT A SAFETY RECALL IN ACCORDANCE WITH FEDERAL REGULATION 573. HOWEVER, IT IS DEEMED A SAFETY IMPROVEMENT CAMPAIGN BY THE AGENCY. THE CAMPAIGN WILL REINFORCE THE BRACKET ATTACHMENTS OF THE REAR LIFTGATE GAS ASSIST CYLINDERS WHICH COULD PULL AWAY FROM THE INSIDE OF THE LIFTGATE.

  Consequence: IF A BRACKET AND GAS ASSIST CYLINDER WERE TO DETACH COMPLETELY FROM THE LIFTGATE AND NO LONGER BEAR AGAINST THE LIFTGATE AS INTENDED, THE REMAINING ASSIST CYLINDER WOULD NOT HOLD THE LIFTGATE IN AN OPEN POSITION. PERSONAL INJURY COULD OCCUR.

  Remedy: FORD DEALERS WILL REINFORCE THE BRACKET ATTACHMENTS.

  31/01/1996

• 95V164001

  STRUCTURE:BODY:HATCHBACK/LIFTGATE:SUPPORT DEVICE/STRUT

  THE HYDRAULIC LIFT CYLINDERS ARE ATTACHED TO BRACKETS THAT ARE WELDED TO THE LIFTGATE. THE BRACKET WELDS CAN FRACTURE.

  Consequence: WITH A BROKEN BRACKET WELD, THERE IS A POTENTIAL FOR THE LIFTGATE BRACKET TO GRADUALLY BEND INWARD ALLOWING THE LIFT CYLINDERBALL STUD TO DISENGAGE.

  Remedy: DEALERS WILL INSTALL REINFORCEMENT BRACKETS.

  25/08/1995

• 01X001000

  TIRES:TREAD/BELT

  THIS IS NOT A SAFETY RECALL IN ACCORDANCE WITH THE SAFETY ACT. HOWEVER, IT IS DEEMED A SAFETY IMPROVEMENT CAMPAIGN BY THE AGENCY. EQUIPMENT DESCRIPTION: FORD IS REPLACING ALL FIRESTONE WILDERNESS AT 15, 16, AND 17 INCH TIRES MOUNTED ON FORD TRUCKS AND SUVS. FORD REPORTS TREAD SEPARATION CAN OCCUR DUE TO A COMBINATION OF THE SENSITIVITY OF THE TIRE DESIGN TO STRESS, AGING, AND MANUFACTURING DIFFERENCES BETWEEN PLANTS. FORD IS REPLACING THESE TIRES TO PREVENT POSSIBLE PREMATURE TIRE FAILURE. VEHICLE DESCRIPTION: THE VEHICLES LISTED BELOW MAY HAVE BEEN ORIGINALLY EQUIPPED WITH FIRESTONE WILDERNESS AT TIRES OR MAY HAVE HAD WILDERNESS AT TIRES INSTALLED DURING THE FIRESTONE RECALL LAUNCHED IN AUGUST 2000. CERTAIN 1991 THROUGHT 2002 FORD EXPLORER CERTAIN 2001 THROUGHT 2002 EXPLORER SPORT, AND SPORT TRAC CERTAIN 1997 THROUGH 2002 MERCURY MOUNTAINEER CERTAIN 1991 THROUGH 2001 RANGER CERTAIN 1999 THROUGH 2001 EXPEDITION CERTAIN 1991 THROUGH 1994, AND 1997 MODEL YEAR F-SERIES CERTAIN 1991 THROUGH 1994 BRONCO NOTE: BOTH ORIGINAL EQUIPMENT AND REPLACEMENT TIRES ARE AFFECTED.

  Consequence: SHOULD THE TREAD SEPARATE AT HIGHWAY SPEEDS, A VEHICLE CRASH COULD OCCUR, POSSIBLY RESULTING IN PERSONAL INJURY OR DEATH.

  Remedy: THE REPLACEMENT/REIMBURSEMENT PROGRAM FOR THIS CAMPAIGN EXPIRED ON MARCH 31, 2002. HOWEVER, CUSTOMERS CAN CONTACT FORD AT 1-877-917-3673 OR GO ON-LINE TO WWW.FORD.COM FOR POSSIBLE ASSISTANCE.

  22/05/2001

• 00T005000

  TIRES:TREAD/BELT

  TIRE DESCRIPTION: FIRESTONE WILDERNESS AT, SIZE P235/75R15, PRODUCED AT THE DECATUR, ILLINOIS TIRE PLANT AND ALL FIRESTONE RADIAL ATX AND RADIAL ATX II TIRES, SIZE P235/75R15. OPERATION OF THESE TIRES AT LOW INFLATION PRESSURES, HIGH SPEED, AND IN HOT WEATHER, CAN CONTRIBUTE TO SEPARATION OF THE TIRE TREAD.

  Consequence: IF THE TREAD SEPARATES FROM THE TIRE, THE DRIVER CAN LOSE CONTROL OF THE VEHICLE, POSSIBLY RESULTING IN A CRASH CAUSING INJURY OR DEATH.

  Remedy: THE REPLACEMENT/REIMBURSEMENT PROGRAM FOR THIS CAMPAIGN EXPIRED ON AUGUST 29, 2001. HOWEVER, CUSTOMERS SHOULD CONTACT FIRESTONE CUSTOMER SERVICE AT 1-800-465-1904 FOR POSSIBLE ASSISTANCE.

  21/08/2000

• 97V235001

  STRUCTURE:BODY:ROOF AND PILLARS

  VEHICLE DESCRIPTION: MULTI-PURPOSE PASSENGER VEHICLES EQUIPPED WITH FACTORY INSTALLED SUNROOF. THE SUNROOF GLASS PANEL ASSEMBLY CAN SEPARATE WHILE THE VEHICLE IS MOVING DUE TO INCORRECT HINGE ENGAGEMENT. THIS WAS CAUSED BY IMPROPER SUNROOF INSTALLATION OF THE GLASS PANEL.

  Consequence: UNEXPECTED SEPARATION OF THE SUNROOF GLASS PANEL COULD POSSIBLY DISTRACT THE DRIVER INCREASING THE RISK OF A VEHICLE CRASH OR LOSS OF VEHICLE CONTROL.

  Remedy: OWNERS WILL BE PROVIDED WITH AN INSTRUCTION BOOKLET WHICH THOROUGHLY OUTLINES, WITH ILLUSTRATIONS, THE PROPER PROCEDURES FOR THE REMOVAL, STORAGE, AND REINSTALLATION OF THE SUNROOF'S GLASS PANEL. A WARNING LABEL FOR ATTACHMENT TO THE SUNROOF'S LATCH KNOB WILL ALSO BE PROVIDED TO THE OWNERS.

  18/12/1997

• 94V169001

  PARKING BRAKE:CONVENTIONAL

  THE PARKING BRAKE CONTROL SELF-ADJUST PAWL DOES NOT LINE UP PROPERLY WITH THE SELF-ADJUST RACHET CAUSING THE PAWL TO SLIP OVER ONE OR MORE TEETH IN THE RACHET.

  Consequence: WHEN THE ABOVE OCCURS, IT CAN RESULT IN PARKING BRAKE SYSTEM INEFFECTIVENESS. THE PARKING BRAKE WILL NOT HOLD THE VEHICLE, CAUSING THE VEHICLE TO ROLL FREELY, IF THE TRANSMISSION IS NOT LEFT IN GEAR.

  Remedy: A WEDGE WILL BE INSTALLED WHICH WILL SERVE TO LOCK THE PARKING BRAKE SELF-ADJUST MECHANISM PAWL INTO ENGAGEMENT WITH THE RACHET. ALSO, OWNERS WILL BE ADVISED TO RELEASE AND REAPPLY THE PARKING BRAKE WHENEVER TOOTH SKIP OCCURS AND WILL BE REMINDED TO ALWAYS TURN OFF THE ENGINE AND LEAVE THE VEHICLE IN GEAR WHEN THE VEHICLE IS PARKED.

  07/09/1994

• 97V083000

  VISIBILITY:REARVIEW MIRRORS/DEVICES

  A SHORT CIRCUIT CONDITION CAN OCCUR IN THE REMOTE POWER MIRROR CONTROL SWITCH CIRCUIT BOARD AS A RESULT OF A SEPARATED PART OF THE CONTACT ASSEMBLY BRIDGING THE SWITCH POSITIVE BATTERY PAD AND ADJACENT CHASSIS GROUND PAD.

  Consequence: THE CURRENT CAN OVERHEAT THE PRINTED CIRCUIT BOARD AND OTHER PLASTIC AND ELASTOMERIC COMPONENTS OF THE SWITCH ASSEMBLY RESULTING IN SMOKE OR FIRE.

  Remedy: DEALERS WILL INSTALL AN IN-LINE 10 AMP FUSE IN THE POSITIVE BATTERY FEED TO THE REMOTE POWER MIRROR CONTROL SWITCH ASSEMBLY.

  05/05/1997

• 96V024001

  SERVICE BRAKES, HYDRAULIC:POWER ASSIST:HYDRAULIC

  THE STUDS WHICH ATTACH THE BRAKE MASTER CYLINDER TO THE POWER BRAKE VACUUM BOOSTER ASSEMBLY CAN DEVELOP STRESS CORROSION CRACKING AFTER BEING OPERATED FOR AN EXTENDED PERIOD OF TIME IN THE SOUTHERN CALIFORNIA LOCATION.

  Consequence: IF A CRACK OCCURS, IT COULD RESULT IN ONE OR BOTH STUDS FRACTURING. THE MASTER CYLINDER COULD THEN SEPARATE FROM THE VACUUM BOOSTER, WHEN THE BRAKES ARE APPLIED, PREVENTING THE SERVICE BRAKES FROM ACTIVATING INCREASING THE RISK OF A VEHICLE ACCIDENT.

  Remedy: DEALERS WILL REPLACE THE POWER BRAKE VACUUM BOOSTER ASSEMBLY.

  05/02/1996

• 99V310001

  STRUCTURE:BODY:HATCHBACK/LIFTGATE:SUPPORT DEVICE/STRUT

  VEHICLE DESCRIPTION: ON CERTAIN SPORT UTILITY VEHICLES, THE HYDRAULIC LIFT CYLINDER BRACKET WELDS COULD FRACTURE.

  Consequence: WITH A BROKEN BRACKET WELD, THERE IS A POTENTIAL FOR THE LIFTGATE BRACKET TO GRADUALLY BEND INWARD ALLOWING THE LIFT CYLINDER BALL STUD TO DISENGAGE, UNEXPECTEDLY ALLOWING THE LIFTGATE TO FALL FROM AN OPEN POSITION.

  Remedy: DEALERS WILL INSTALL LIFTGATE REINFORCEMENT BRACKETS. DEPENDING UPON THE CONDITION OF THE LIFTGATE SHEET METAL IN THE AREA OF THE BRACKET, DEALERS MAY ALSO INSTALL A LARGER REINFORCEMENT.

  03/11/1999

Built with CarVector

One call. The same data you just read.

The page above isn't marketing — it's the API response, rendered. Here's the exact JSON your code receives for this vehicle.

{
  "id": "up03i34ep4adrdm",
  "year": 1993,
  "make": "Ford",
  "model": "Explorer",
  "trim": null,
  "submodel": "SUV",
  "horsepower": 155,
  "cylinders": 6,
  "displacement_l": 4,
  "transmission": "Automatic 4-spd",
  "drive_type": "RWD",
  "fuel_type": "Gasoline",
  "body_class": "Special Purpose Vehicles",
  "image_url": "https://vehicle.s3.us-east-005.backblazeb2.com/vehicles/1993/Ford/Explorer_80a7fd60_/1993_Ford_Explorer_80a7fd60_00001_.png",
  "image_type": "illustration",
  "recall_count": 9
}

Compare

Related vehicles in the catalog.

1996

Ford Explorer

1995

Ford Explorer

1994

Ford Explorer

1993

Ford Aerostar Cargo

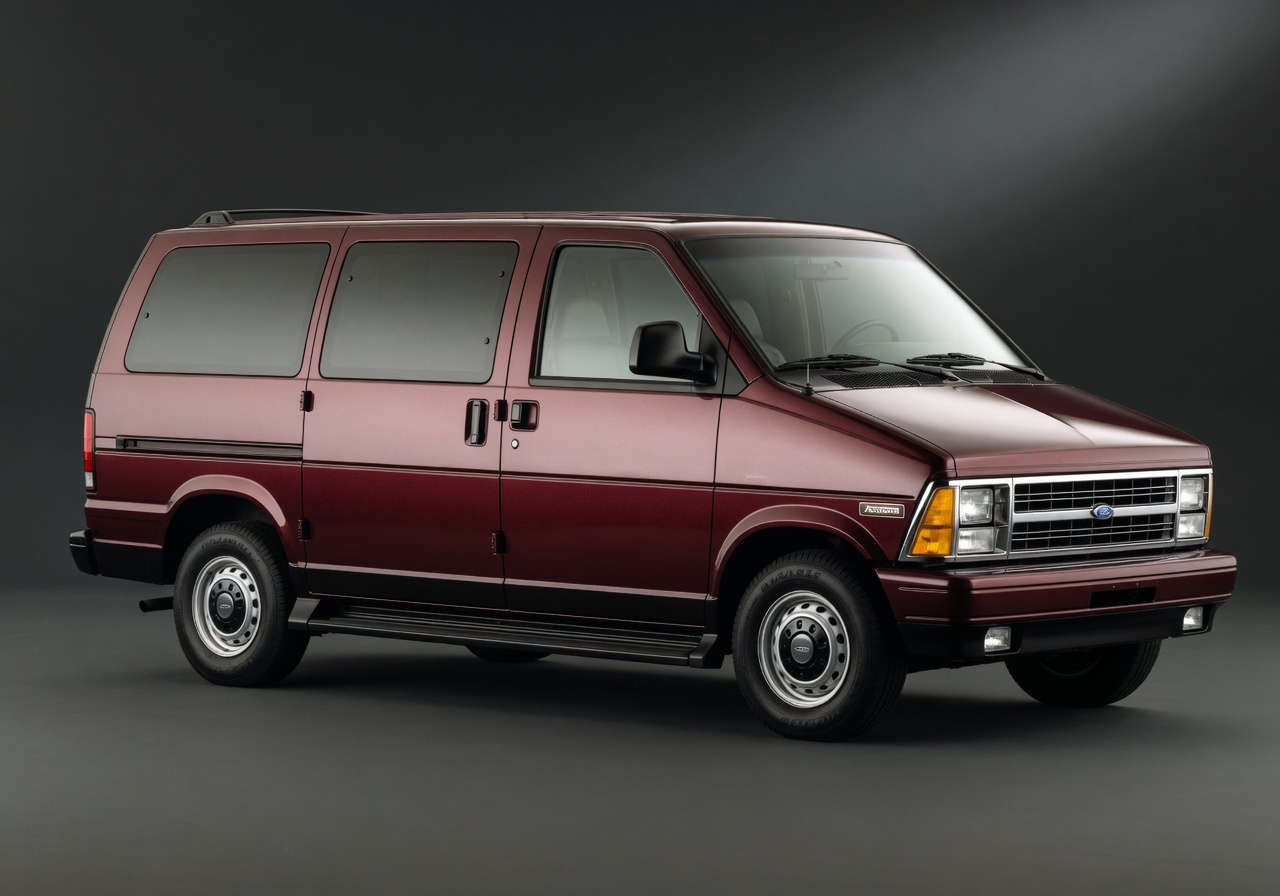

1993
